More Than Just a Panel
Energy Saving and Noise Reduction, Creating A New Experience of Comfortable Space.

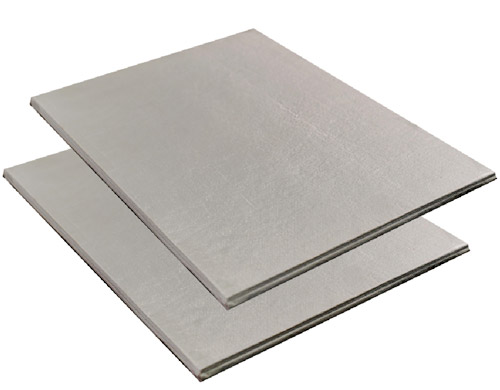

Building insulation panel is formed by vacuuming and encapsulating its main raw materials, core, film and getter into high-barrier film pouch.
Glass Fiber: The thermal insulation material with SiO2 as the main body is prepared into glass fiber with a diameter of 6~9μm by high temperature drawing, and the core sheet is made by chopped dry hot pressing process.
Film: It is composed of metal evaporation, aluminum foil layer, high temperature resistant glass fiber mesh cloth and other multi-layer materials, and has excellent resistance to water and gas.
Getter&Desiccant: CaO is the main water absorbing material, and metal compounds with gas-absorbing ability are mixed at the same time.
Specifications
◆ Properties
VIP Core Material | Hot-pressed Chopped Glass Fiber |
Thermal Conductivity (mW/(m·k)) | ＜5.0 |
Maximun Size: W*L(mm) | 880*1600 |
Minimun Size: W*L(mm) | 100*100 |
Thickness (mm) | 5~50 |
Tolerance(mm) | L/W：±5 T：±1.5 |
◆ Energy-saving Parm
Total Area of Ultra-low Energy Building (㎡) | 80 | 5500 | 21460 | 78000 |
Energy Saving(10,000kW.h/Y) | 0.21 | 14.71 | 42.92 | 157.5 |
Saving Total Amount of Standard Coal (T/Y) | 0.67 | 46.9 | 137.1 | 503.1 |
Reduce Total CO₂ Emissions (T/Y) | 2.08 | 142.7 | 424.0 | 1527.7 |

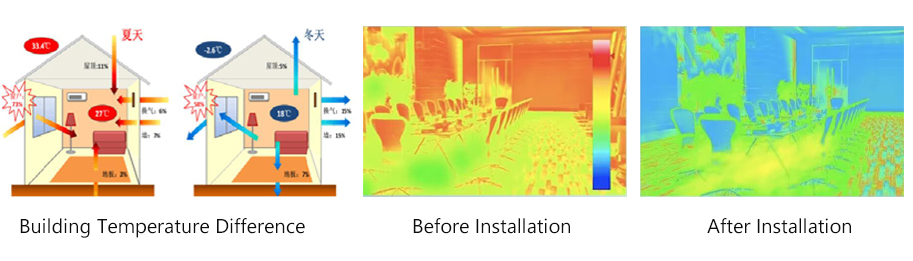

◆ Display
Features and Benefits

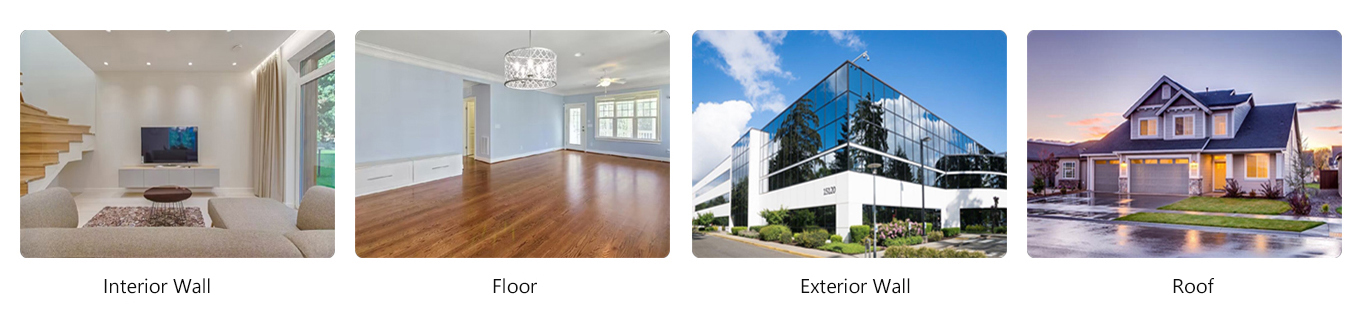

Applications
