More Than Just a Panel
A High Efficient Thermal Insulation Material Combined With Microporous Technology and Vacuum Technology
Fumed silicon VIP uses fumed silicon dioxide raw material, combined with vacuum technology, thermal conductivity can be below 4.5mW/(m·K) and it has long-term stability.
Fumed Silica: Nano-microporous fumed silica is an ideal material for thermal insulation. This material has advanced technology and high economic benefits. It not only has ideal thermal insulation performance, but also can greatly reduce the thickness of the thermal insulation layer.
Barrier Film: Multiple high barrier materials such as metal vapor deposition, nano-composite vapor deposition and EVOH are used in multilayer composites, which have excellent water and gas barrier capabilities.
Specifications
◆ Properties
VIP Core Materials | Nano Microporous Fumed Silica（CC） | Nano Microporous Fumed Silica（CC Plus） |
Thermal Conductivity(mW/(m·k)) | <4.5 | <4.0 |
Maximun Size: W*L(mm) | 950*1100 | |
Minimun Size: W*L(mm) | 100*100 | |
Thickness (mm) | 5~50 | |
Tolerance (mm) | L/W: ＜600, ±3 / ＞600, ±5 T：±1 | |

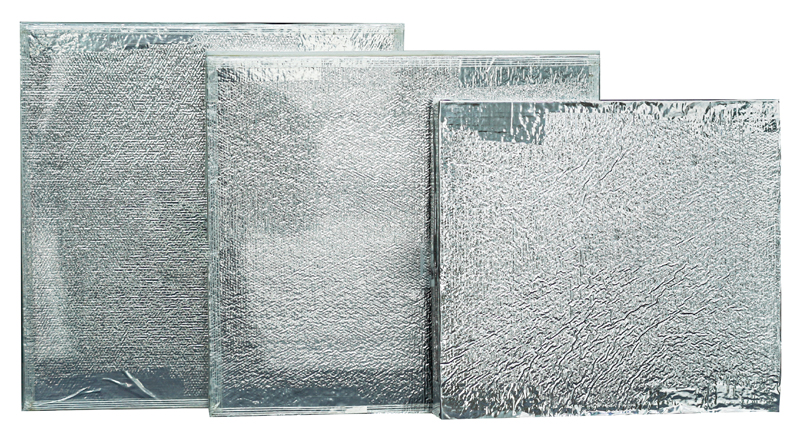

◆ Display
Features and Benefits
Applications
